Universal Digital Galaxy UD-16RAT/UD-16R2AT/UD-18RAT/UD-18R2AT/UD-32R2AT Printer

UD-16RAT UD-16R2AT UD-18RAT UD-18R2AT UD-32R2AT Universal Digital Galaxy 1.60m 1.80m 3.20m Eco Solvent Printer

Universal Digital Newest model Galaxy UD-16RAT/UD-16R2AT/UD-18RAT/UD-18R2AT/UD-32R2AT 5ft/6ft/10ft galaxy eco solvent printer on sale (work with i3200 head)

Feature:

1, Equipped with 1 or 2 i3200-E1 print head.

2, Full aluminum platform.

3, Stable and long durability bearing rail.

4, Max printing width: 1.60m, 1.80m, 3.20m, optional.

This Printer can print for Ceilling film, Vinyl, PS Board, KT Board, PVC Foam Board, Window Flim, Polyester, Flex, Back-lit Film, etc.

  • Reasonable layout of electric control box.
  • Anti-collision on both sides of the front, effectively protect the nozzle.
  • Rugged moisturizing system.
  • Single linear guide, high speed and precision.
  • Independent adjustable press wheel.
  • Adjustable high precision platform, heating before matching.
  • 1.5L large ink drum, equipped with intelligent alarm device for ink shortage.
  • Humanized intelligent digital control panel.
  • Intelligent heating control system, can be segmented heating, energy saving.
  • High power infrared drying system.
  • Dual power distribution system with paper shortage alarm device.
  • Humanized design, convenient device maintenance.
Model UD-16RAT/UD-16R2AT UD-18RAT/UD-18R2AT UD-32R2AT
Printing Width 1600mm 1800mm 3200mm
Printhead 13200-E1 x 1/2pc 2
X direction config Steel strip + bearing
RIP Maintop (equipped)/ Photoprint (optional)
Power 3300W 3400W 5900W
Machine size 2698mm x 746mm x 1411mm 2958mm x 746mm x 1411mm 4480mm x 760mm x 1420mm
Package size 2910mm x 740mm x 845mm 3190mm x 740mm x 845mm 4590mm x 740mm x 940mm
N.W/G.W 180kgs/340kgs 184kgs/361kgs 324kgs/567kgs
Double bars feeding(80kgs) optional equipped
Bracket feeding (40kgs) equipped optional
Single bar takeup(80kgs) not equipped optional
Bracket takeup (40kgs) equipped optional
Speed(sqm/h) 213200 head : 2pass 103sqm/h; 3pass 68sqm/h; 4pass 52sqm/h; 6pass 34sqm/h; 8pass 26sqm/h.
113200 head : 2pass 52sqm/h; 3pass 34sqm/h; 4pass 26sqm/h; 6pass 17sqm/h; 8pass 13sqm/h.
Universal Digital Galaxy UD-16RAT UD-16R2AT UD-18RAT UD-18R2AT UD-32R2AT ECO Solvent Printer 1.60m 1.80m 3.20m

Galaxy UD-32R2AT ECO Solvent Printer

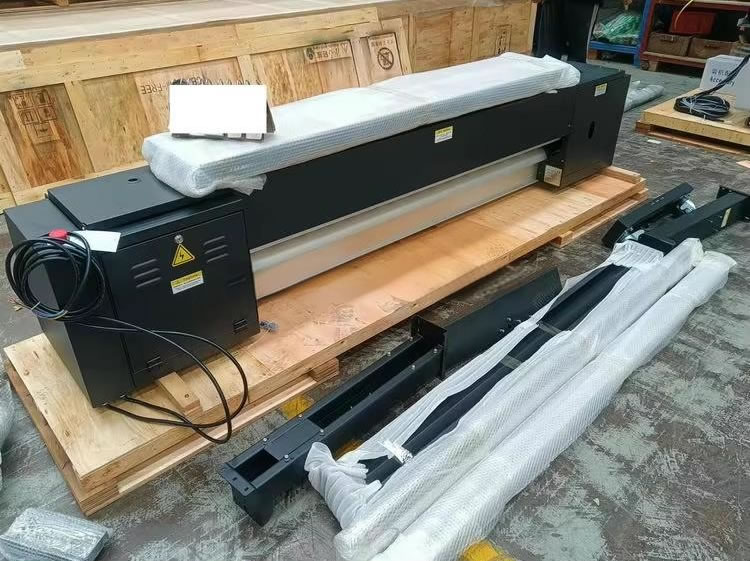

Galaxy Printer AT Series Real Photo

UD-32R2AT Universal Digital Galaxy 1.60m 1.80m 3.20m Eco Solvent Printer AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer. UD-32R2AT 10ft 3.20m Universal Digital Galaxy Eco Solvent Printer AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer. Universal Digital UD-16RAT UD-16R2AT Galaxy 5ft 1.60m Inkjet Printing Plotter AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer.

UD-32R2AT UD-18RAT UD-18R2AT UD-16RAT UD-16R2AT I3200 E1 Print Head Galaxy Eco Solvent Printer AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer. UD-18R2AT 6 Feet 1.8m Dual Double I3200 Heads Galaxy Plotter Printer AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer. UD-18RAT UD-18R2AT 6ft 1.80m Universal Digital Galaxy Printer AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer. Universal Digital UD-16RAT UD-16R2AT Galaxy 5ft 1.60m Inkjet Printing Plotter AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer.

UD-32R2AT UD-18RAT UD-18R2AT UD-16RAT UD-16R2AT I3200 E1 Print Head Galaxy Eco Solvent Printer AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer. UD-18R2AT 6 Feet 1.8m Dual Double I3200 Heads Galaxy Plotter Printer AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer. UD-18RAT UD-18R2AT 6ft 1.80m Universal Digital Galaxy Printer AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer. Universal Digital UD-16RAT UD-16R2AT Galaxy 5ft 1.60m Inkjet Printing Plotter AllSign Printer - Phaeton Galaxy UD-32R2AT ECO Solvent Printer.

The picture is only for reference,please make the object as the standard.
The Speed data varies in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along with the chnage of printheads. When printing with serveal printers at the same time, a difference in printing colors may exists due to a difference exist in every single printer.
