3.2M Eco Solvent Printer AS3202 with 2 New Epson DX5 printhead Digital Photo Printing Machine

3.2M Eco Solvent Printer AS3202 with 2 New Epson DX5 printhead Digital Photo Printing Machine

Download the PDF Catalogue for Eco Solvent Printer AS3202



Advanced Functions

Brand Sparepart Standard Setup
BYHX-EPSON_2 Boards
Maintop RIP software
Leadshine 180W servo motor For X and Y motion
Japanese NSK bearing
Germany IGUS drag train
Germany IGUS Power cable
Italy Megadyne belt
Japanese THK linear guide with two pcs mute slider
JYY DC ink Pump

Flagship Printer body
20*20CM main beam for body
20MM Y motion axis
4.4M Aluminum beam for carriage
High quality 215mm wide printing bed
36 pcs of pinch roller
Aluminum XY holders
Computer built in
Aluminum beam
Intelligent infrared heating system
LED lights for printing bed
Media width measure sensor
4 in 1 heating control system
Rear-Printing bed-front heater

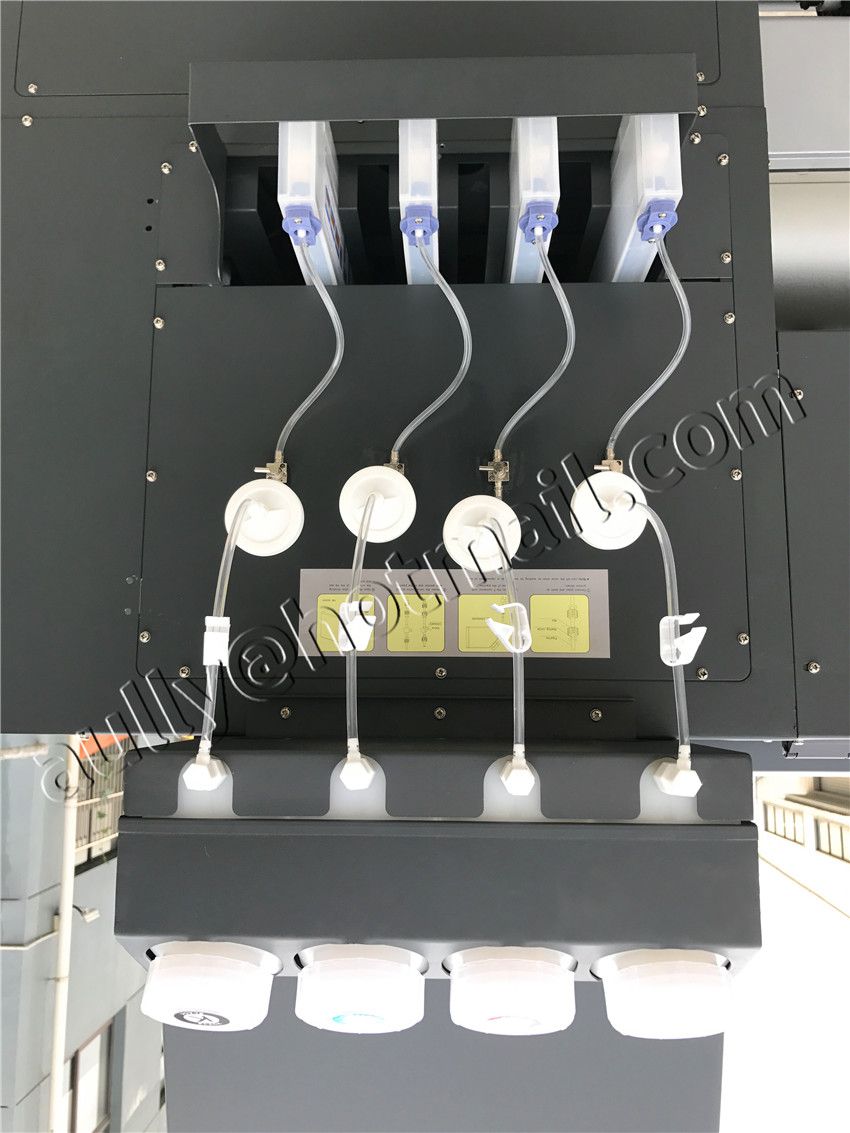

Bulk ink supply system
Lift type carriage
Automatic cleaning and wiping system



■ High-efficient printing

1.Rip while printing;
2.Print selected area;
3.Skip white in X and Y printing directions;
4.Auto media sensor for setting print origin automatically.
(3 picture positions: left, middle and right)

■ Printing quality enhanced

1.Two feather printing modes :moist, gradient;
2.Simple printhead calibration mode can be easily mastered by operators;
3.Micro adjustment of printhead voltage.

■ Human-based functions

1.Options of automatically sensing or manually setting media origin;
2.Adjustable step value during printing;
3.Operations both in computer interface and machine control panel;
4.Automatic and constant ink system cleaning function.

■ Ink saving function

1.Options for single head cleansing or double heads cleansing;
2.Options for light, medium and heavy printhead sucking.

■ Printhead lifespan prolonged

1.All color channels can be exchanged freely so as to prolong the printhead lifespan.



■ Double heads speed

2pass:64m²/h 3pass:44m²/h 4pass:32m²/h
6pass:22m²/h 8pass:16m²/h 12pass:11m²/h

Special Features

■ High resolution

1.High mechanical precision ensures precise printing, use high precise aluminum beam, two processes by high precision planomiller, ensures beam with high precision as international level.1mm error limit;
2.Printing resolution by four gray scale printing technology, three type variation dot, dark, middle and light, the minimum is 3.5pl,10 types difference size variable dot can be printed, enabling printing of small exquisite character more clearly.

■ High speed

1.Fire frequency 15K,running speed up to 1m/s, printing speed 15.5-21m²/h with one head, two heads with
29.2-37.4m²/h two times productivity than old machine.

■ More stable

1.Each color has independent control circuit, precision up to 0.04V without sharing, voltage keep the same, and has temperature compensation, printhead adapt temperature automatically, allowing outstanding performance.

High-Quality
——Industry leading Printing Quality and Output Performance

ECO Solvent Printer

Eco Solvent Printer

Eco Solvent Printer

Type AS3202
Print head Double micro piezo print head Epson DX5 x2PCS
INK Water-based/ Thermal transfer/ solvent
Maximum Print Width 160cm
Resolution / Printing Speed
(sqm/H)
  4 heads 2 heads
720x360dpi 2pass 128 64
360x1080dpi 3pass 88 44
720x720dpi 4pass 64 32
720x1080dpi 6pass 44 22
720x1440dpi 8pass 32 16
720x1080dpi 12pass 22 11
Ink Capacity 1000cc per main tank of each color
Tri-heaters Pre-bed-back heater 30-65℃
Drying System Auto infrared heating/Drying fans
Take up System Standard configuration
Environment Requirements Temp: 15-35℃ Relative Humidity: 40%-65%
Size (L*W*H) 4800*1120*1680mm/ 980kgs

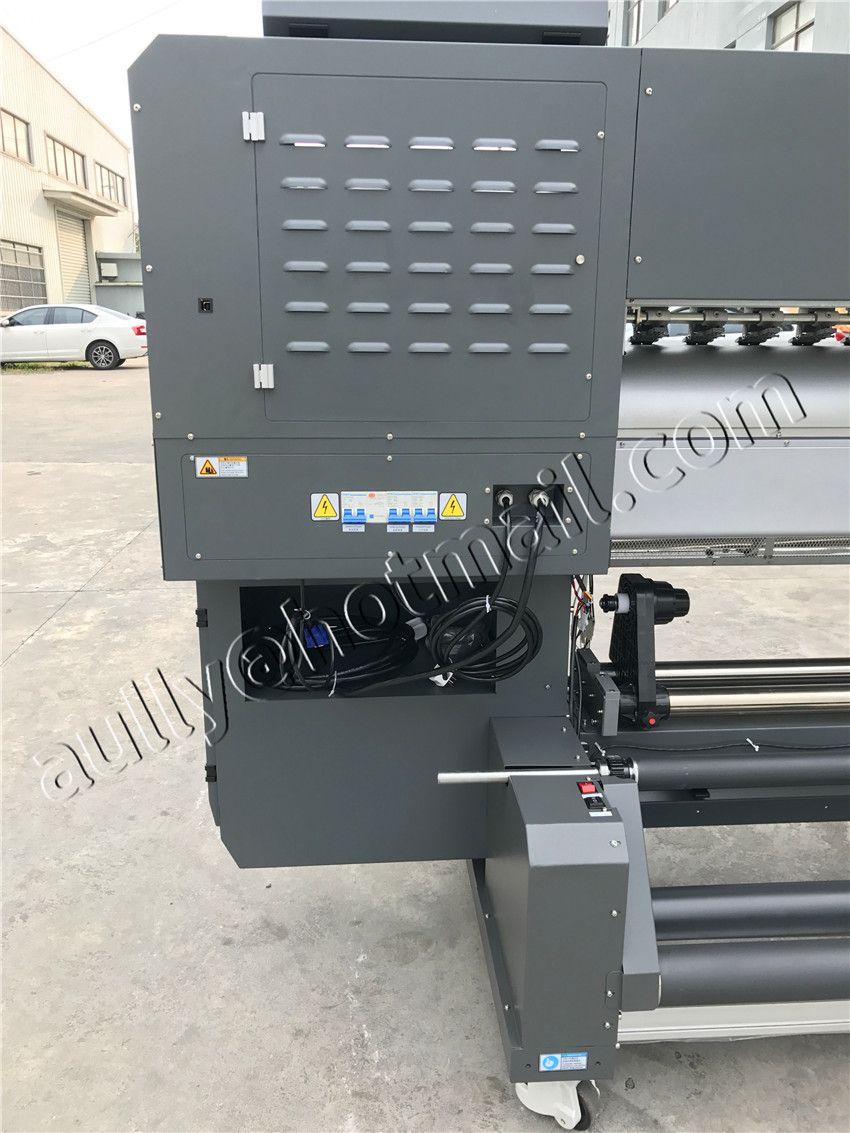

Digital Photo Printing Machine AS3202 Photos

3.2M Eco Solvent Printer AS3202  with 2 New Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202  with 2 New Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202.

3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202.

3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202.

3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202.

Old Model

3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202.

3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202. 3.2M Eco Solvent Printer AS3202 with 2PCS Epson DX5 printhead AllSign Printer - ECO Solvent Printer- AS3202.

The picture is only for reference,please make the object as the standard.
The Speed data varies in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along with the chnage of printheads. When printing with serveal printers at the same time, a difference in printing colors may exists due to a difference exist in every single printer.
