■3.2M high resolution outdoor printer
1440dpi overturns the highest resolution of traditional printers which leads the resolution of large format outdoor printing to a new standard.
Your new profit pattern will be established and new business opportunity will be discovered.
Double heads speed | Four heads speed |
2pass: 64 ㎡/h 3pass: 44 ㎡/h 4pass: 32 ㎡/h 6pass: 22 ㎡/h 8pass: 16 ㎡/h 12pass: 11 ㎡h |
2pass: 128 ㎡/h 3pass: 88 ㎡/h 4pass: 64 ㎡/h 6pass: 44 ㎡/h 8pass: 32 ㎡/h 12pass: 22 ㎡/h |
■ Advanced software functions
Ⅰ. high-efficient printing
1.rip while printing;
2.print selected area;
3.skip white in X and Y printing directions;
4.auto media sensor for setting print origin automatically(3 picture positions: left, middle and right);
Ⅱ.printing quality enhanced
1.three feather printing modes :moisted, gradient, wave;
2.simple printhead calibration mode can be easily controlled by operators;
3.micro adjustment of printhead voltage;
Ⅲ.human-based functions
1.options of automatically sensing or manually setting media origin;
2.adjustable speed during printing;
3.operations both in computer interface and machine control panel;
4.automatic and constant ink system cleaning function;
Ⅴ. ink saving function
1.options for single head cleansing or double heads cleansing;
2.options for light, medium and heavy printhead sucking;
Ⅵ. printhead lifespan prolonged
1.All color channels can be exchanged freely so as to prolong the printhead lifespan.
Specification | AS1800 | AS3200 |
Printhead | Micro piezo print head | |
Inks | Water-based/Thermal transfer/Solvent-based | |
Maximum printing width | 180cm | 320cm |
Resolution | 540dpi、720dpi、1440dpi | |
Printing modes | 2pass、3pass、4pass、6pass、8pass、12pass | |
Speed with single printhead | 32㎡/h、22㎡/h 、16㎡/h 、11㎡/h 、8㎡/h 、5.5㎡/h | |
Speed with two printheads | 64㎡/h、44㎡/h 、32㎡/h 、22㎡/h 、16㎡/h 、11㎡/h | |
Four heads printing speed | 128㎡/h、88㎡/h 、64㎡/h 、44㎡/h 、32㎡/h 、22㎡/h | |
Ink cassette capacity | 1000cc/color | |
Three heating sections | None | Pre-heater, printing bed heater, rear heater30℃-65℃ |
Picture drying system | Standard configuration: Infrared heating with fan drying system | |
Auto feeding/collecting system | Standard configuration | |
Environmental conditions | Temperature15-35℃ Relative Humidity:40%-65% | |
Dimensions(L*W*H)/Weight | 3110*700*1380/198kg | 4420*820*1450/380kg |
AllSign Printer - ECO Solvent Printer - AS1802. AllSign Printer - ECO Solvent Printer - AS1802.

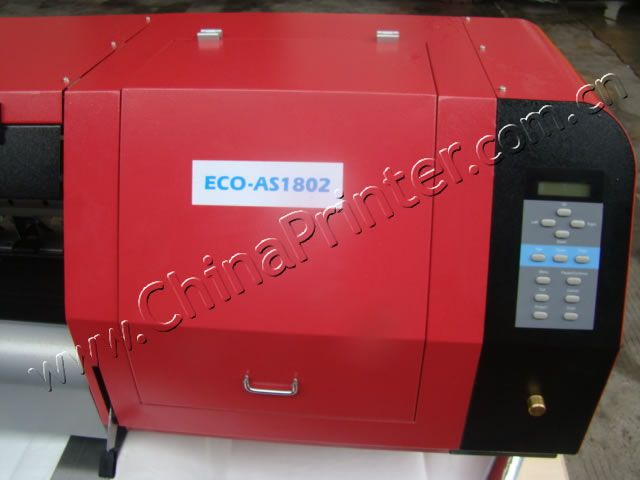

For AllSign ECO Solvent Printer 1.8M
AllSign Printer - ECO Solvent Printer - AS1802. AllSign Printer - ECO Solvent Printer - AS1802. AllSign Printer - ECO Solvent Printer - AS1802. AllSign Printer - ECO Solvent Printer - AS1802.
For AllSign ECO Solvent Printer 4 Epson DX5 Heads
AllSign Printer - ECO Solvent Printer - AS1804/AS3204. AllSign Printer - ECO Solvent Printer - AS1804/AS3204. AllSign Printer - ECO Solvent Printer - AS1804/AS3204. AllSign Printer - ECO Solvent Printer - AS1804/AS3204.

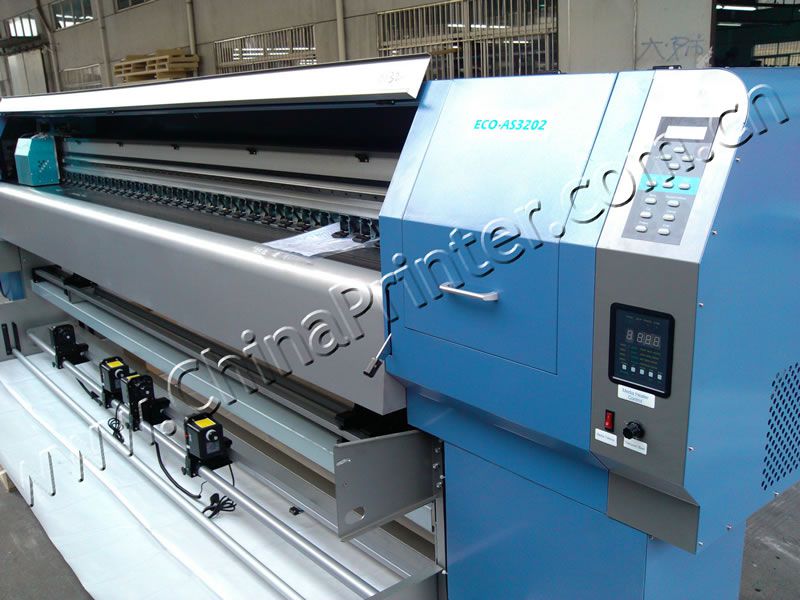

For AllSign ECO Solvent Printer 3.2M
AllSign Printer - ECO Solvent Printer - AS3202. AllSign Printer - ECO Solvent Printer - AS3202. AllSign Printer - ECO Solvent Printer - AS3202. AllSign Printer - ECO Solvent Printer - AS3202.
AllSign Printer - ECO Solvent Printer- AS3202. AllSign Printer - ECO Solvent Printer- AS3202. AllSign Printer - ECO Solvent Printer- AS3202. AllSign Printer - ECO Solvent Printer- AS3202. AllSign Printer - ECO Solvent Printer- AS3202.
The picture is only for reference,please make the object as the standard.
The Speed data varies in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along with the chnage of printheads. When printing with serveal printers at the same time, a difference in printing colors may exists due to a difference exist in every single printer.
But as far as we know, most for the operation is similar for different printer.
